Alfaline Cabinet
  • The front and side covers are openable, lockable and easily removable.
  • The rear cover is made by high strength 1,5 mm DKP sheet that provides high strength with holes for wall mounting.
  • Ventilation is provided by cooling units with 1 or 2 fans.
  • There are two options of depth; 450mm and 560mm. Five options of height; 7U, 9U, 12U, 16U and 20U.
  • There are two mounting profile in 450 mm depth cabinets and four mounting profile in 560 mm depth cabinet.
  • Cabinets have cable entries from 3 different points on the bottom frame, top frame and rear cover.
  • If required, it can be used as a floor type by attaching a fixed foot or castor.
  • Painted by impact-resistant,high strength, electrostatic Ral 7035 texture grey color.
  • All test procedures have been carried out and has ROSH, CE, EN 61587-1 standards.

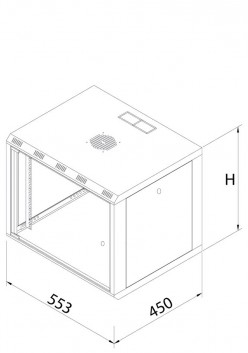

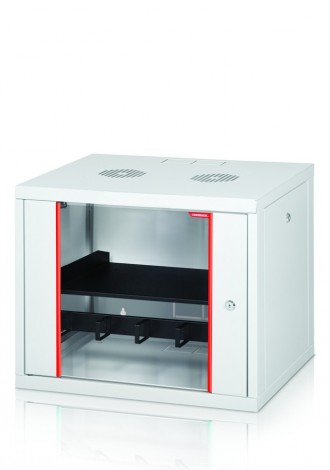

19" 600x450mm Rack Cabinet Width: 555mm  Depth: 450mm
Order No U
(1U=44,45 mm)		 h
Inside Height (mm)		 H
Outside Height (mm)		 Weight (Kg)
FT-7U450 7 314 371 14
FT-9U450 9 403 460 16
FT-12U450 12 536 593 19
FT-16U450 16 714 771 24
FT-20U450 20 892 949 29

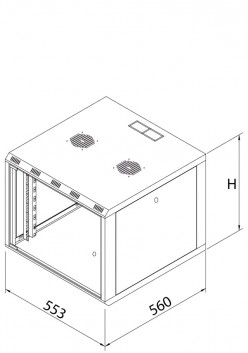

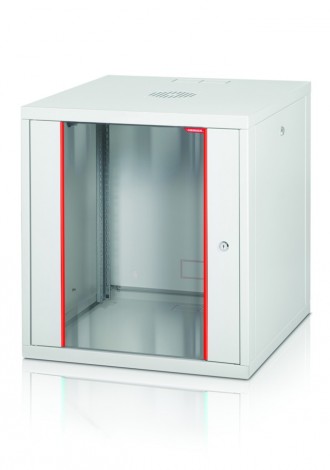

19" 600x560mm Rack Cabinet Width: 555mm  Depth: 560mm
Order No U
(1U=44,45 mm)		 h
Inside Height (mm)		 H
Outside Height (mm)		 Weight (Kg)
FT-7U560 7 314 371 16
FT-9U560 9 403 460 18
FT-12U560 12 536 593 22
FT-16U560 16 714 771 28
FT-20U560 20 892 949 34
