Server Cabinet
  • Server cabinets have four side openable, lockable and easily removable covers.
  • The all covers are made by DKP sheet and the front and rear covers have a vertically double open perforated strucutre.
  • The main frame is 1,5 mm, side and rear covers are 1,2 mm steel sheet.
  • The frame and corner profiles have nested structure and this structure provides high strength.
  • Ventilation is provided by cooling units with 2,4 or 6 fans.
  • There are 600x1000(double open değil) and 800x1000 dimension and 26U , 32U, 36U and 42U height options.
  • At the top part there is a protective structure that prevent to entrance of dust and foreign matters.
  • There are four 19” mounting profiles with 2 mm sheet thickness and these profiles can move deep within the cabinet.
  • Mounting profiles have U markings that facilitate the mounting process.
  • At the bottom and top parts there is a dust protected brushed cable entry.
  • It has the option of using wheeled and fixed legs.
  • The cabinet has a balance foot against tilting.
  • Impact-resistant,high strength, electrostatic Ral 9005 texture black color.
  • All test procedures have been carried out and has ROSH, CE, EN 61587-1 standards.

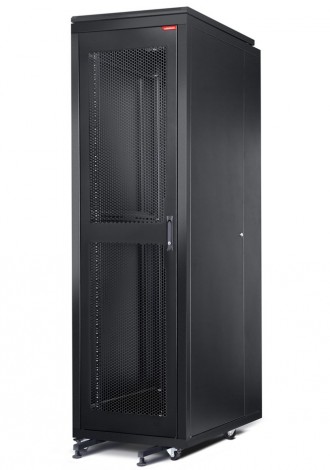

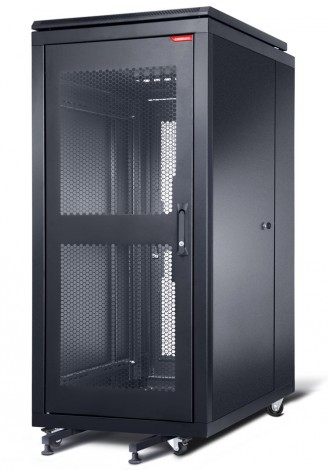

19" 600x1000mm Server Cabinet Width: 600mm  Depth: 1000mm
Order No U
(1U=44,45 mm)		 h
Inside Height (mm)		 H
Outside Height (mm)		 Weight (Kg)
FT SC-26U60100 26 1158 1386 79
FT SC-32U60100 32 1425 1653 91
FT SC-42U60100 42 1870 2098 106

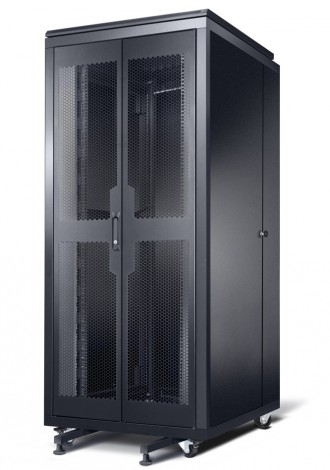

19" 800x1000mm Server Cabinet Width: 780mm  Depth: 1000mm
Order No U
(1U=44,45 mm)		 h
Inside Height (mm)		 H
Outside Height (mm)		 Weight (Kg)
FT SC-36U80100 36 1603 1831 105
FT SC-42U80100 42 1870 2098 120
